What is Graphite?　　　　　　　　　　　　　　　　　　　　　　Characteristics of Graphite: Electrical Resistance and Thermal Conductivity

    You can download related documents or send product inquiries at the bottom of this page.

    Photo by Getty Images

    In Japan, the temperature has begun to drop and it is finally a comfortable season,

    so the end of the year 2022 is approaching.



    As mentioned in our news release the other day

    We held a ceremony to commemorate the achievement of 250,000 tons of cumulative production of isotropic graphite materials.

    https://www.toyotanso.com/News/product/ceremony_20220929_en.html

    We would like to take this opportunity to thank you all again.



    By the way, graphite, the material we handle, is used in a variety of places.

    The reasons why graphite is used in various applications are as follows

    Graphite can do what other materials cannot do.



    Why do we use graphite instead of other materials or metals?

     To understand the reason, the following features should be kept in mind.

    Compared to metal, it is



    1. Heat resistant

    2. Super lightweight

    3. Increased strength at higher temperatures

    4. Low thermal expansion

    5. Good thermal conductivity

    6. Good electrical conductivity

    7. Self-lubricating



    Here, we would like to introduce the characteristics of graphite, namely, electrical conductivity and thermal conductivity.



    You can download related documents or send product inquiries at the bottom of this page.

    Experiments on electrical conductivity of graphite


    As you can see in the experimental movie

    Glass　⇒　Does not conduct electricity

    Copper　⇒　Conducts electricity

    Graphite　⇒　Electrical conduction

    We found that graphite conducts electricity in the same way as metals.

    Thermal conductivity of graphite



    Graphite  ⇒ The first fastest temperature rise rate.

    Copper  ⇒ The second fastest temperature rise rate.

    SUS, glass ⇒ The candle was hard to melt.

    We found that graphite has high immediate response.



    Taking advantage of these characteristics, "graphite" is also used in heaters (parts that generate heat and warm up).

    A document explaining the features of graphite in more detail is available for download at the end of this document.

    We hope you will find it useful.

    You can download related documents or send product inquiries at the bottom of this page.

    Analytical technologies

    By analyzing heat deformation, heat stress, current density distribution, and other factors  in complex product shapes using FEM computer simulations depending on your environment, Toyo Tanso offers comprehensive support of design proecesses for improving product performance , reducing costs, improving product development speed, etc.




    The Toyo Tanso Advantage

     Advantage 1: Varied product lineup

    As a materials manufacturer that develops materials in-house, Toyo Tanso boasts one of the industry’s widest product lineups.

     Easily find the best product to meet your needs.

     Advantage 2: From large-scale to precision processing

    Toyo Tanso is a pioneer in the field of carbon, with extensive experience at every step from manufacturing materials to processing products. This know-how allows us not only to handle a wide variety of processing tasks, but also to provide a broad range of products, from individual prototypes to small-lot and mass production of products in any size and shape.

    Advantage 3: Excellent technical support

    Over the years, Toyo Tanso has gathered extensive experience and data that we make use of in our various technical services, including product design, analysis, and verification. We are dedicated to meeting the needs of our customers and helping solve whatever problems they are facing.




    Material Download

    Topics

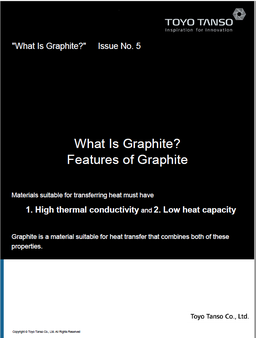

    N0.5
